High-Efficiency 550W Solar Panel for Commercial & Industrial Applications
In the competitive landscape of renewable energy, maximizing power output and return on investment per square meter is paramount. Our painel solar 550w represents the pinnacle of monocrystalline PERC technology, engineered specifically to meet the demanding energy requirements of commercial, industrial, and large-scale residential projects. Designed for durability and exceptional performance even in low-light conditions, this panel delivers reliable, high-yield power generation, making it an optimal choice for system integrators and project developers aiming to optimize their installations.
Product Overview

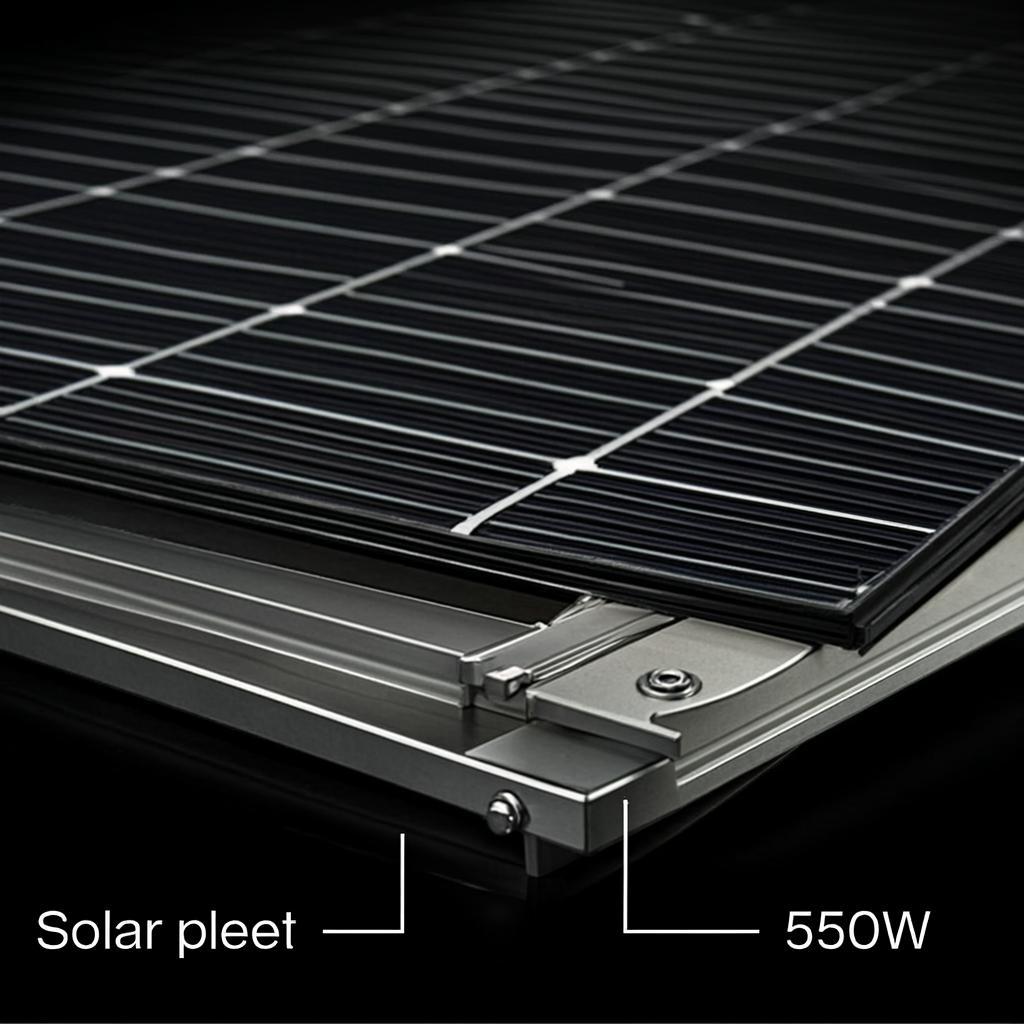

This 550W monocrystalline solar panel is built with cutting-edge cell and module technology. It features 144 high-efficiency half-cut PERC cells, which reduce internal resistance and minimize power loss due to shading. The multi-busbar (MBB) design enhances light capture and current collection, while the robust anodized aluminum frame and high-transmission, anti-reflective tempered glass ensure long-term reliability in diverse environmental conditions. This painel solar 550w is certified to the highest international standards, guaranteeing safety, performance, and bankability for your most critical projects.
Key Features
- High-Efficiency Monocrystalline PERC Cells: Boasts a cell efficiency of over 22.5%, converting more sunlight into usable electricity.
- Half-Cell Technology: Reduces current and resistive losses, improves shade tolerance, and lowers operating temperature for enhanced longevity.
- Multi-Busbar (MBB) Design: Incorporates 12+ busbars to increase light-receiving area and improve electrical conductivity, boosting overall module efficiency.
- Superior Low-Light Performance: Advanced cell technology ensures consistent energy yield during early morning, late evening, and overcast days.
- Enhanced Durability: Withstands high wind loads (2400Pa) and snow loads (5400Pa), backed by a 25-year linear power output warranty and a 12-year product warranty.
- PID Resistance & Hot-Spot Protection: Advanced encapsulation and cell quality prevent Potential Induced Degradation and minimize hot-spot risks, ensuring stable long-term output.
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum Power (Pmax) | 550W |
| Cell Type | Monocrystalline PERC, Half-Cut |
| Cell Number | 144 (6×24) |
| Module Efficiency | ≥ 21.0% |
| Power Tolerance | 0 ~ +5W |
| Maximum Power Voltage (Vmp) | 41.70 V |
| Maximum Power Current (Imp) | 13.19 A |
| Open Circuit Voltage (Voc) | 49.85 V |
| Short Circuit Current (Isc) | 13.97 A |
| Maximum System Voltage | 1500V (IEC) |
| Dimensions (L × W × H) | 2278 × 1134 × 35 mm |
| Weight | 28.5 kg |
| Frame | Anodized Aluminum Alloy |
| Front Cover | High-Transmission, Anti-Reflective Tempered Glass (3.2mm) |
| Junction Box | IP68 Rated, 3 Bypass Diodes |
| Operating Temperature | -40°C to +85°C |
| Warranty | 12-Year Product Warranty, 25-Year Linear Power Warranty (≥ 84.8% output at year 25) |
Application Scenarios
The high power density and reliability of our painel solar 550w make it exceptionally versatile for a wide range of B2B applications:
- Commercial & Industrial Rooftops: Ideal for maximizing energy generation on large, flat, or sloped commercial roofs, reducing operational electricity costs.
- Utility-Scale Solar Farms: The high wattage reduces balance-of-system (BOS) costs, including mounting structures, cabling, and labor, improving the overall project economics.
- Agricultural & Farming Operations: Powers irrigation systems, greenhouses, and processing facilities, supporting sustainable agribusiness.
- Large Residential Complexes: Suitable for apartment buildings, gated communities, and off-grid homes requiring a robust and high-output energy solution.
- Carport and Ground-Mount Installations: Its robust construction and high efficiency perform reliably in both shaded carport and open-field environments.
Advantages
Choosing our 550W solar panel translates into tangible benefits for your project's bottom line and performance.
- Higher Energy Yield per Rooftop: Achieve more kilowatt-hours from the same area, crucial for space-constrained installations.
- Reduced Levelized Cost of Energy (LCOE): Higher efficiency and power output lower the cost per installed watt and the cost of energy over the system's lifetime.
- Superior Reliability: Rigorous quality control and premium materials minimize failure rates and operational downtime.
- Future-Proof Investment: The high power class aligns with the latest inverter and system design trends, ensuring compatibility and value for years to come.
- Global Certifications: Compliant with IEC 61215, IEC 61730, UL 61730, and CE standards, ensuring easy market access and project financing.
Why Choose Us
As a professional manufacturer and supplier in the solar industry, we offer more than just a product; we provide a partnership for success.
- OEM/ODM Expertise: We offer flexible customization options for labeling, packaging, and electrical parameters to meet specific project or brand requirements.
- Strict Quality Assurance: Every painel solar 550w undergoes multiple performance and safety tests, from raw material inspection to final production audit.
- Competitive Pricing & Stable Supply: Vertical integration and economies of scale allow us to offer premium products at highly competitive prices with reliable lead times.
- Technical & Logistics Support: Our expert team provides comprehensive technical data, system design support, and efficient global logistics solutions.
- Proven Track Record: Our panels are deployed in megawatt-scale projects worldwide, trusted by EPCs and developers for their consistent quality and performance.
FAQ
What is the actual average daily output of one 550W panel?
Daily output depends heavily on location and sunlight hours. As an estimate, in a region with 5 peak sun hours, one panel can generate approximately 2.75 kWh per day (550W * 5h = 2750Wh). Annual yield can be accurately modeled using local solar irradiance data.
Are these panels compatible with mainstream string and microinverters?
Yes. The electrical parameters (Voltage and Current) of our painel solar 550w are designed to be fully compatible with major 1500V string inverters from brands like Huawei, Sungrow, SMA, and others, as well as high-power microinverters.
How does half-cell technology improve performance?
Half-cut cells lower the current within each cell string, reducing resistive (I²R) losses. They also make the panel more resistant to partial shading; if one half is shaded, the other can often continue operating near full capacity.
What does the 25-year linear power warranty cover?
We guarantee that the panel will deliver at least 97% of its rated power in the first year. Thereafter, the annual degradation will not exceed 0.55%, ensuring a minimum of 84.8% of original power output by the end of year 25.
Do you provide samples, and what are the payment terms?
Yes, we provide sample panels for qualified B2B clients. Standard payment terms include T/T or LC, with flexible options negotiable for large-volume orders. Contact our sales team for a detailed quotation and sample policy.
